Nutri ONE – wiring and commissioning

Fig. 1 Nutri ONE dispenser – delivery sector
Fig. 2 Nutri ONE dispenser – installation
Fig. 3 Nutri ONE dispenser – list of components
NumberDescription
1Connector or Connector Extension (type of device depends on the technological design)
2YDY 3 x 1.5mm 2 cable terminated with a hermetic socket
3Volumetric dispenser
4Nutri ONE electronic dispenser
5Drain pipe
6Trigger

Choose which device you will connect the Nutri ONE dispenser to
Connector
Connector Extension

Nutri ONE – wiring diagram for the Connector

Fig. 4 Connector – wiring diagram of Nutri ONE dispenser
NumberDescription
1Main power supply 12 VDC (from the top: +12 VDC, GND)
2Inputs for Nutri ONE dispensers (max 8 pcs).
(from top: +12VDC, GND, CANLxO, CANHxO, CANLxI, CANHxI)
See Figure 5
3CAN communication output to Connector – Extension (from top: GND, CANL, CANH)
4230 VAC power supply for Nutri ONE dispensers (from the top: N, L)
See Figure 6
5Output 230 VAC to built-in DC power supply (from top: PE, N, L)
6Input 230 VAC – main power supply of the Connector (from the top: L, N, PE)
Fig. 5 Nutri ONE – connecting power and CAN communication
Fig. 6 Nutri ONE – 230 VAC power supply connection

Nutri ONE – wiring diagram to the Connector Extension

Fig. 7 Connector Extension – wiring diagram of Nutri ONE dispenser
NumberDescription
1230 VAC input – serial connection from Connector (from left: L, N, PE)
2230 VAC power supply for Nutri ONE dispensers (from the top: N, L)
See Figure 9
3Inputs for Nutri ONE dispensers (max 8 pcs).
(from bottom: +12VDC, GND, CANLxO, CANHxO, CANLxI, CANHxI)
See Figure 8
4CAN communication input on Connector – Extension (from the left: GND, CANL, CANH)
5230 VAC input for built-in DC power supply (from the top: L, N, PE)
6Main power supply 12 VDC (from the top: GND, +12 VDC)
Fig. 8 Nutri ONE – connecting power and CAN communication
Fig. 9 Nutri ONE – 230 VAC power supply connection

Nutri ONE – connecting the trigger

Important!
The wires from the trigger should be led on the side of the trough, so that the sow cannot access them.

  1. Unscrew the mounting screws from the trigger
  1. Thread the wire without the eyelet through the mounting hole in the allen bolt
  1. Twist the mounting screws from the trigger
  1. Put the line with the eyelet between the washers
  1. Tighten the screw securing the cable from the trigger

Nutri ONE – configuration in the app

  1. After logging in, click the highlighted button.
  1. Scroll down the displayed panel to the very bottom, so that the “Settings” button is visible.

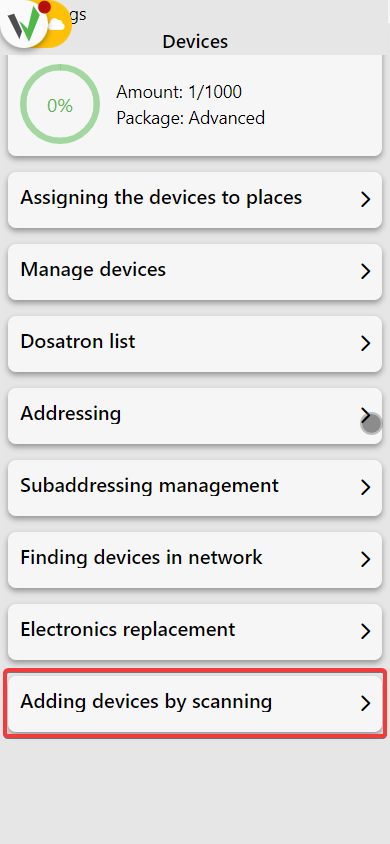

  1. Go to the “Devices” tab, then in the newly opened window scroll to the very bottom and go to the “Add devices by scanning” tab.
  1. Select which Bridge you want to add a Nutri ONE dispenser to [1] and choose to add dispensers from the list [2], then select the Nutri ONE dispenser type.
  1. Scan the QR code on the device case.

Configure the channel, address and subaddress for the dispenser.

  1. After logging in, click the highlighted button.
  1. Then go to the “Service” tab.
  1. From the available tabs, select “Dispensers” and then go to the “NUTRI ONE / NUTRI GROUP / NUTI PRO Configurator” tab.
  1. In the first step, select to which Bridge [1] and on which channel [2] you are adding the Nutri ONE dispenser
  1. In the next step, configure the channel. Follow the instructions on the screen.
  1. Disable all connectors that have a different channel and / or has already been previously configured.
  2. Proceed further to start configuring the channels.
  3. Wait until the desired connectors start blinking with a pink LED and click the button to proceed.
  1. In the next step, perform device addressing. Select the starting address from the available address pool [1], specify the number of devices to be addressed [2] and select the addressing mode [3].
  1. Follow the instructions on the screen.
  1. Wait until the LEDs on the Nutri ONE dispensers turn yellow.
  2. Press the top green button on the Nutri ONE dispenser
  3. The LED on the dispenser will start flashing.
  4. The LED on the Nutri ONE dispenser will turn green after a while. This is a confirmation of correctly performed addressing.
  5. If you are addressing more than one dispenser wait until the LEDs on the unaddressed Nutri ONE dispensers turn blue and repeat steps 10 through 12.
  6. Repeat the steps until you have addressed all devices.
  7. In the next configuration step, perform subaddressing. Follow the steps on the screen.
  1. Check that all Connectors flash the orange LED.
  2. Press, hold and do not release the top green button on the Nutri ONE dispenser
  3. Press, hold and do not release the lower red button on the Nutri ONE dispenser.
  4. Wait until both buttons blink.
  5. Release the red button.
  6. Release the green button. The LED on the dispenser will turn orange.
  7. Starting from station 1, press the top button on the dispenser. The LED will turn blue.
  8. Repeat the previous point on subsequent dispensers, in the order in which the positions will be numbered.
  9. Repeat steps 17 – 23 on the next Connectors.
  10. Once the last dispenser has been addressed, press the button to move on and complete the subaddressing process.
  11. Confirm subaddressing

Nutri ONE – assigning dispensers to delivery crates

Assigning dispensers to birthing stations is described in the article: How to assign a dispenser to the crate?

Nutri ONE – basic dispenser configuration

Configuring Nutri ONE dispensers is described in the article: How to configure a Nutri ONE dispenser?

Nutri ONE – feed calibration

Feed calibration of Nutri ONE dispensers is described in the article: How to calibrate a feed?
